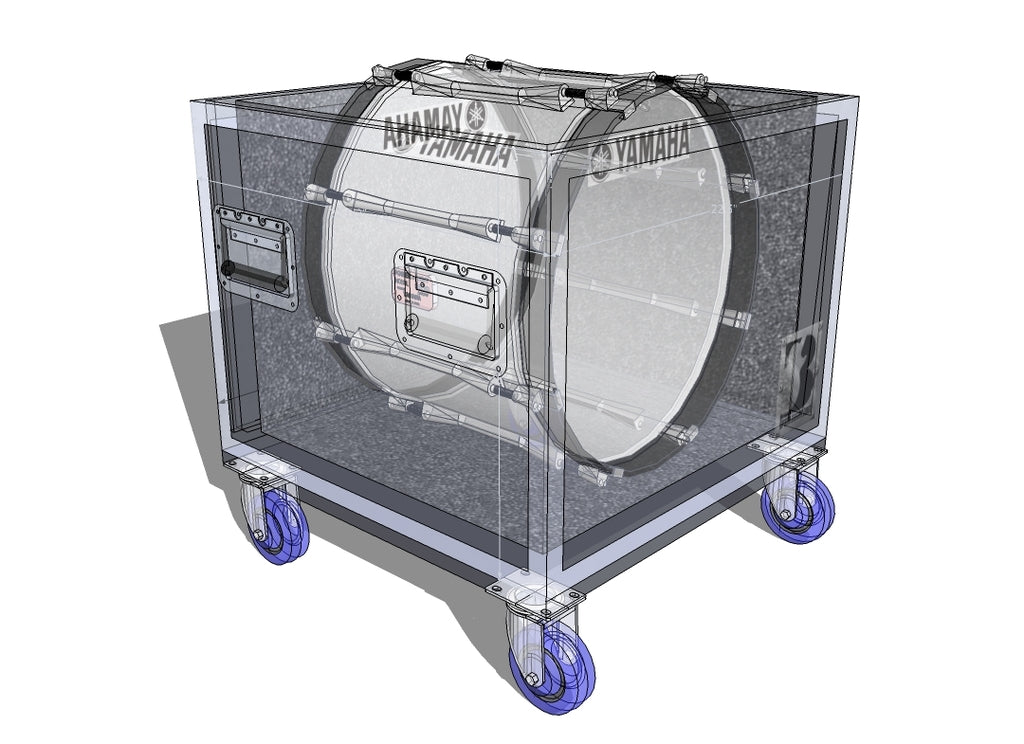

Single 16 inchMarching Bass Case

Single 16 inchMarching Bass Case

We have paused production for a season and aren't currently taking on orders. Feel free to fill out the form (or contact us here) if you're interested in being placed in a waiting list when production resumes, or if you'd like recommendations or support. Thanks!

Details

This a case for standard bass drum. They can be built to your specific sizes as well. Choose your school/organization color. We also recommend making them stackable for easy trailer loading

Specifications:
  • 46 inchw x 13" d x 21.5" h - interior dimensions per drum
  • 49" w x 31.5" d x 30.5" h - exterior dimensions (including casters)
  • Interior Dimensions - 19.5" w x 19.5" d x 19.5" h (foam to foam)
  • Exterior Dimensions - 22.5" w x 22.5" d x 28 inchh (including casters) (quarter truck pack size - 4 fit across a standard trailer)
  • Birch w/ ABS laminate
  • 4 inch heavy-duty casters w/ 2 locking mounted to a 3/4 inch casterboard
  • Hybrid valence tongue & groove
  • Double angle extrusion
  • Large steel ball corners
  • High strength blind rivets either extrusion or washer backed
  • 4 recessed handles total (2 per side)
  • 2 zinc recessed large latches on front
  • 90 degree stop hinges on back with piano hinge spanning between
  • 1" foam interior around the drums (1" plank in base, 1" ester around sides and top)
