Flat Board & board cases Options

Common upgrades
For more info see the bottom of the page.
Color Option Swatches
Color Swatches
Your Price:$55.00
Ask Question

Description:

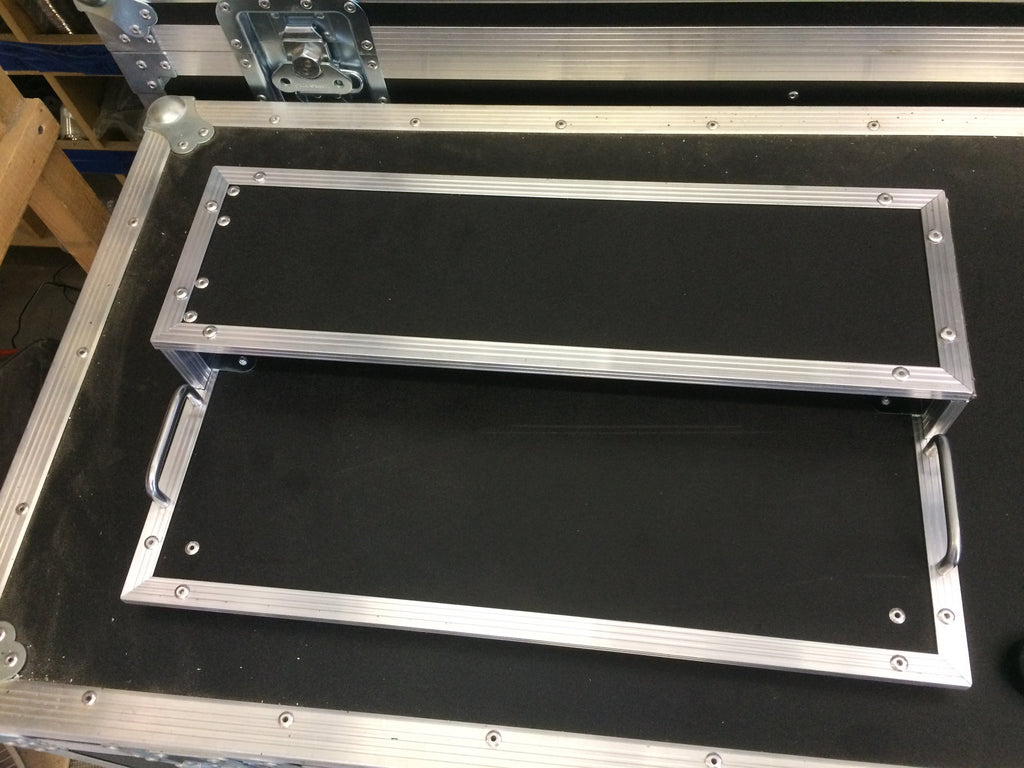

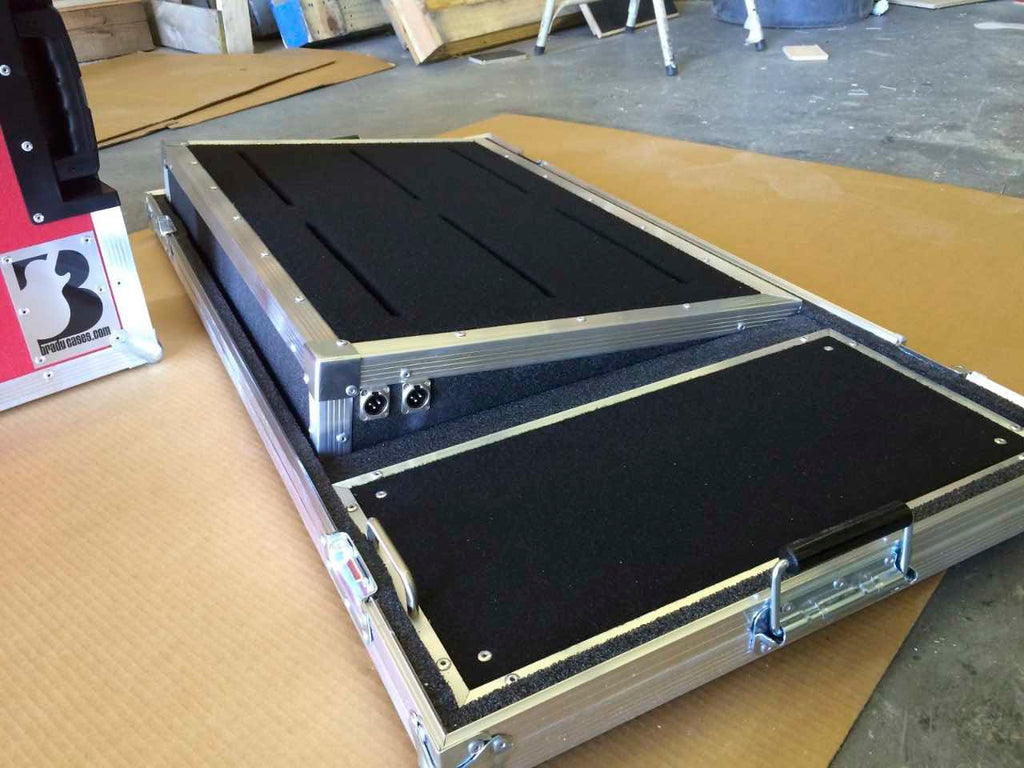

These are our flat boards. They come with or without the case and we can make them any size upon request. They come standard with a laminate top and the velcro top is a $15 up charge to any flat board. Also, you can choose just the case without the interior board if you already have a pedal board.

They come standard in 3/8" with laminated birch (it is laminated on top and can apply most velcro to the surface). It has U-channel trim around the perimeter and the dimensions (i.e., 16" w x 12" d) is the usable space in between the aluminum. It has two surface handles on each side. The ATA cases are built exactly for each board. They are the same specs as any pedal train case on our webpage and have the same upgrade options. We also have acrylic and plexiglass boards available and can build the flat board out of polypropylene for weight savings. Contact us for details or questions!


Case Specifications:

  • 1/4" birch plywood w/ black laminate ($50 extra for polypropylene case)
  • Hybrid valence tongue & groove
  • Double angle extrusion
  • Small ball corners
  • High strength blind rivets either extrusion or washer backed
  • 1 recessed handle on front, 2 surface handles on sides
  • 4 zinc recessed latches (2 in front - 2 in back)
  • 1" high-density foam inside casing
Note: The dimensions are usable space, not the exterior of the board. If you need the exterior to be a certain size, put "external dimensions" in the notes or email us after placing the order. If you are ordering a case or flat board to fit something we've already built, please let us know in the notes so we can size it accordingly.

The trim adds about 1"-1.5" to the width and depth.
If you are ordering with case please keep in mind that we give a standard ¼" of wiggle room on the total width and depth of the frame of the board so the lid comes off easier. If you want it to be exactly snug, please put in the notes that you want it to be exact when ordering but we do recommend it. Also, if you have pedals that are abnormally tall in the back, please note what size you'd need. Or measure from the bottom of the pedal board, excluding the feet as they'll sink into the foam to the top of the tallest pedal in the back. We recommend pedals sinking into the foam about ¼"-½" so the pedals are snug inside the foam.
