Flat Board & board cases

Flat Board & board cases

We have paused production for a season and aren't currently taking on orders. Feel free to fill out the form (or contact us here) if you're interested in being placed in a waiting list when production resumes, or if you'd like recommendations or support. Thanks!

Details

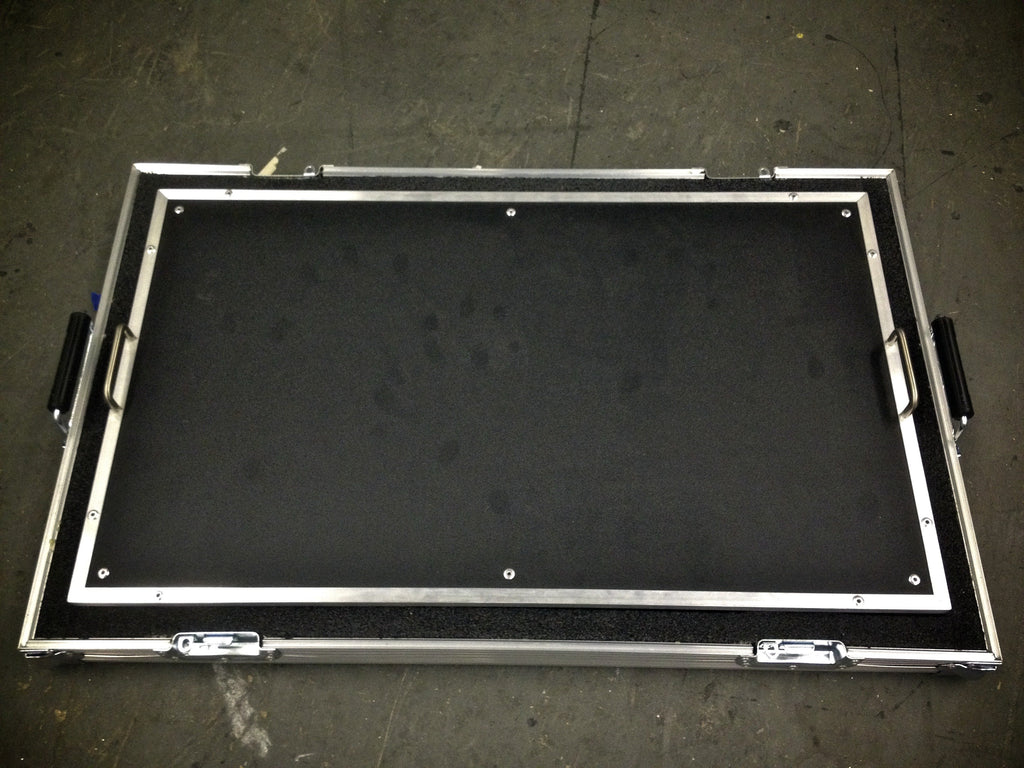

These are our flat boards. They come with or without the case and we can make them any size upon request. They come standard with a laminate top and the velcro top is a $25 up charge to any flat board which covers the entire surface in between the aluminum trim. Also, you can choose just the case without the interior board if you already have a pedal board.

They come standard in 3/8 inch with laminated birch (it is laminated on top and can apply most velcro to the surface). It has U-channel trim around the perimeter and the dimensions (i.e., 16 inchw x 12" d) is the usable space in between the aluminum. It has two surface handles on each side. The ATA cases are built exactly for each board. They are the same specs as any pedal train case on our webpage and have the same upgrade options. We also have acrylic and plexiglass boards available and can build the flat board out of polypropylene for weight savings. Contact us for details or questions!


Case Specifications:

  • 1/4 inch plywood w/ black laminate ($50 extra for polypropylene case)
  • Hybrid valence tongue & groove
  • Double angle extrusion
  • Small ball corners
  • High strength blind rivets either extrusion or washer backed
  • 1 recessed handle on front, 2 surface handles on sides
  • 4 zinc recessed latches (2 in front - 2 in back)
  • 1" high-density foam inside casing

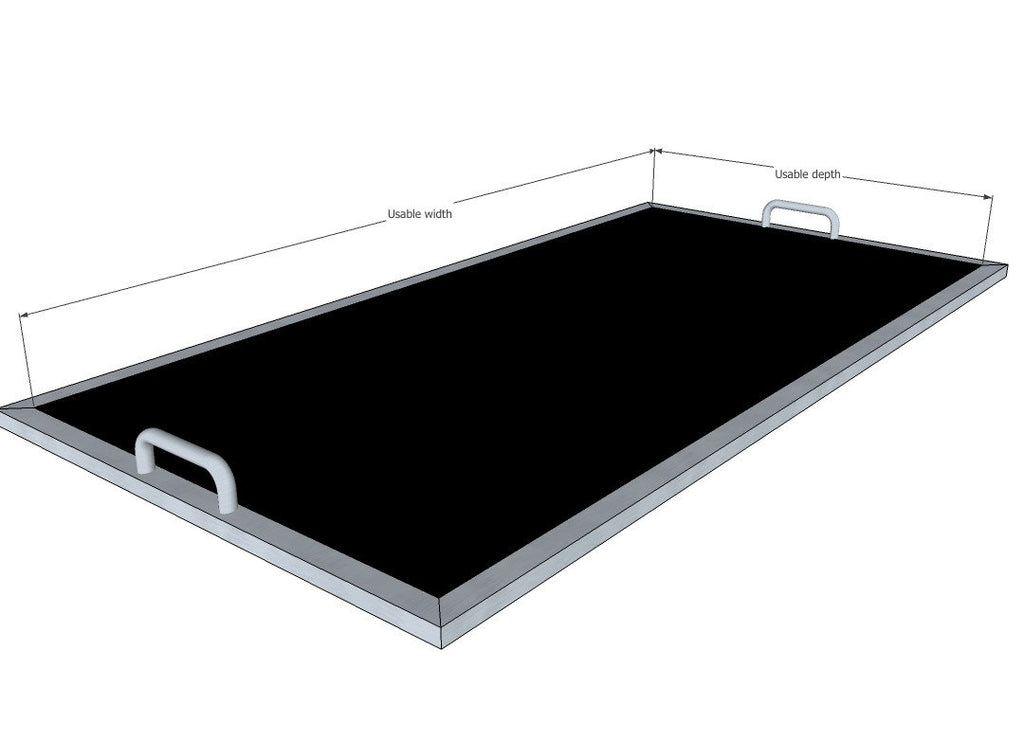

Note: The dimensions are usable space, not the exterior of the board. If you need the exterior to be a certain size, put "external dimensions" in the notes or email us after placing the order. If you are ordering a case or flat board to fit something we've already built, please let us know in the notes so we can size it accordingly.

The trim adds about 1"-1.5" to the width and depth.
If you are ordering with case please keep in mind that we give a standard of wiggle room on the total width and depth of the frame of the board so the lid comes off easier. If you want it to be exactly snug, please put in the notes that you want it to be exact when ordering but we do recommend it. Also, if you have pedals that are abnormally tall in the back, please note what size you'd need. Or measure from the bottom of the pedal board, excluding the feet as they'll sink into the foam to the top of the tallest pedal in the back. We recommend pedals sinking into the foam about so the pedals are snug inside the foam.
